直線導軌和滾珠絲桿區別很大，雖然同屬直線傳動設備，但是其工作原理、要求以及使用范圍都不一樣，但兩者的表現在直線傳動方面表現卻都非常出眾。滾珠絲杠是工具機械和精密機械上更常使用的傳動元件，是由螺桿、螺母、鋼球、預壓片、反向器、防塵器組成。其主要功能是將旋轉運動轉換成線性運動，或?qū)⑴ぞ剞D(zhuǎn)換成軸向反復作用力，同時兼具高精度、可逆性和率的特點。

There is a significant difference between linear guides and ball screws. Although both belong to linear transmission equipment, their working principles, requirements, and scope of use are different, but their performance in linear transmission is excellent. Ball screw is the most commonly used transmission component in tool and precision machinery, consisting of screws, nuts, steel balls, pre pressing plates, reversers, and dust collectors. Its main function is to convert rotational motion into linear motion or torque into axial repeated force, while also possessing the characteristics of high accuracy, reversibility, and high efficiency.

主要用于一些機床大型設備、雕刻機械等較為普遍，非常方便的把旋轉的運動轉換成直線運動，用起來非常方便，從而減少整個設備在旋轉方面的磨損大大降低。直線導軌使用較為廣泛但種類很多，方型四排高珠導軌用于一些大型機床設備，如平面磨床，切片機、線切割等；也因工作條件的不同選用的直線導軌也是不同的，更適于精密測量儀器、半導體制造和檢驗設備、非標自動化機械設備以及其他精密直線運動至為重要的應用場合等，因不同設備需要選擇正確的導軌也是至關重要的。

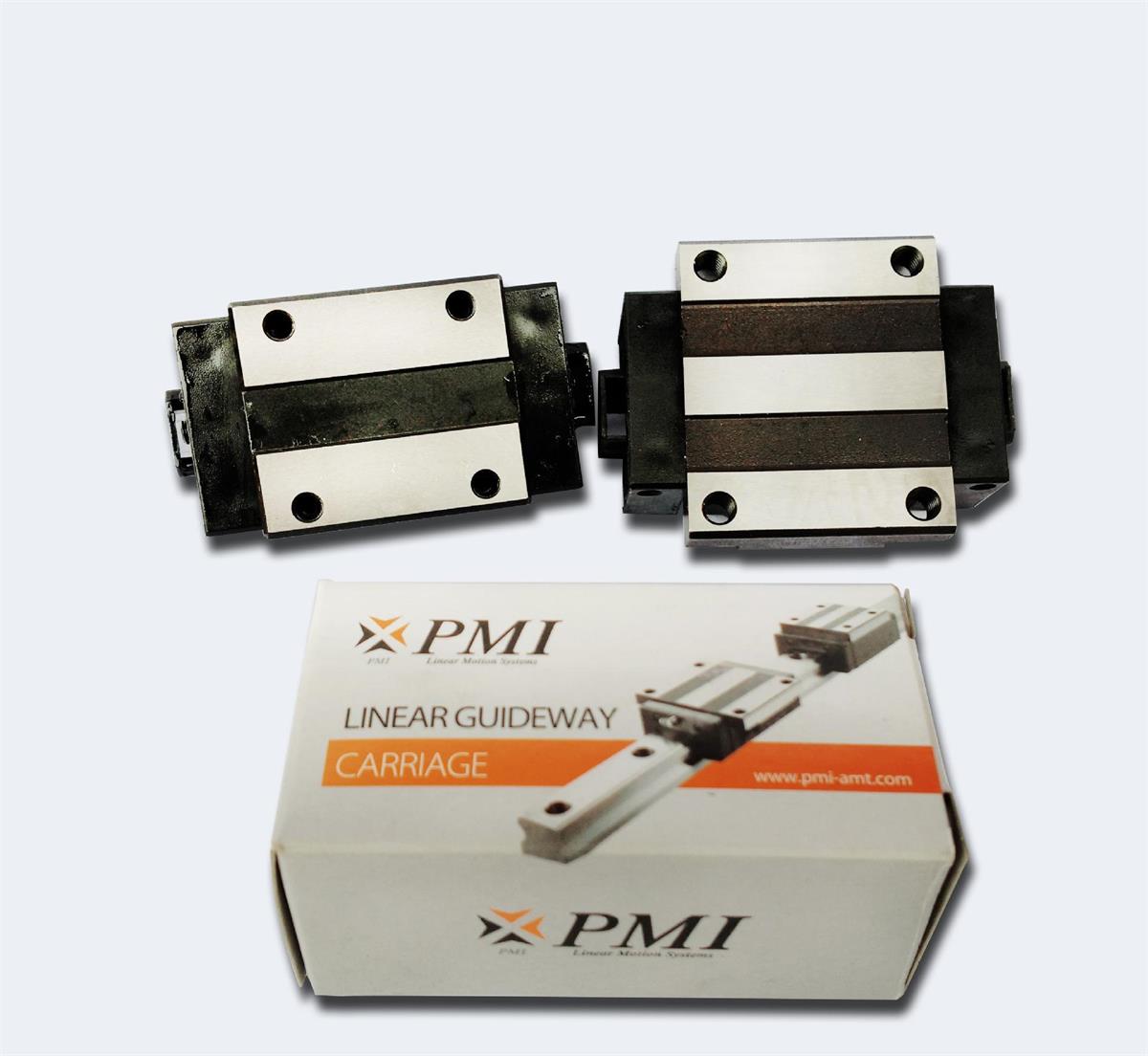

導軌絲杠

It is mainly used for some large-scale machine tools, carving machinery, etc. It is very convenient to convert rotating motion into linear motion, which is very convenient to use, thereby reducing the wear and tear of the entire equipment in terms of rotation. Linear guide rails are widely used but have many types. Square four row high ball guide rails are used for some large machine tools and equipment, such as surface grinders, slicers, wire cutting, etc; The selection of linear guides varies depending on the working conditions, and is most suitable for precision measuring instruments, semiconductor manufacturing and inspection equipment, non-standard automated mechanical equipment, and other applications where precision linear motion is crucial. Choosing the correct guide is also crucial for different equipment needs.

滾珠絲桿的特性：與滑動絲桿副相比驅動力矩為1/3、高精度的保證、微進給可能、無側隙、剛性高、高速進給可能。直線導軌的特性：定位精度高、磨耗少能長時間維持精度、使用高速度運動且大幅降低機臺所需驅動馬力、可同時承受上下左右的負荷、組裝容易并具互換性、潤滑結構簡單。

The characteristics of ball screw: Compared with sliding screw pairs, the driving torque is 1/3, ensuring high accuracy, possible micro feed, no backlash, high rigidity, and possible high-speed feed. The characteristics of linear guide rail include high positioning accuracy, low wear, ability to maintain accuracy for a long time, use of high-speed motion and significantly reduce the required driving horsepower of the machine, ability to simultaneously bear loads of up, down, left, right, easy assembly and interchangeability, and simple lubrication structure.
