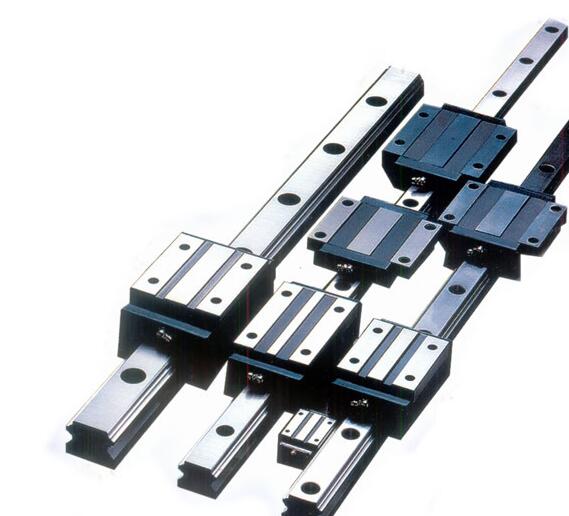

Linear bearing is the self-lubricating characteristic of a linear motion system. The difference between linear metal bearing and linear metal bearing is that the linear metal bearing is rolling friction, and the bearing and cylindrical shaft are point contact, which is suitable for low load and high-speed motion; while the linear plastic bearing is sliding friction, and the bearing and cylindrical shaft are surface contact, so this is suitable for high load medium and low-speed motion. We want to make the linear bearing work better, then we must maintain it! Next, the guide screw manufacturer will explain the main maintenance items of the linear bearing in detail for you:

　　我們必須注意維護時的線性軸承維護不同的軸承是不一樣的:金屬直線軸承維護:潤滑和摩擦,線性軸承內部注入防腐油,如果使用油脂潤滑,一個用煤油或有機溶液去除防腐油,空氣干燥,然后添加潤滑脂。(建議使用粘度標記為N0.2的鋰皂潤滑脂)潤滑時不需要去除防銹油，根據溫度變化可選擇粘度等級為ISO vg15-100的潤滑油。由于密封圈會刮油，油潤滑不適合有密封圈的無孔軸承。塑料直線軸承的保養:由于塑料直線軸承的滑動膜是由自潤滑塑料制成，所以在使用過程中不需要額外的供油和保養;而且由于塑料直線軸承帶有切屑槽，所以即使軸承或軸上擠滿了灰塵也不需要保養，灰塵在運動過程中會自動從切屑槽中移出;只有當滑動膜磨損時，才能直接更換內滑動膜。易于維護。

　　We must pay attention to the maintenance of linear bearings. The maintenance of different bearings is different: maintenance of metal linear bearings: lubrication and friction. Anti corrosion oil is injected into the linear bearings. If grease lubrication is used, the first one is to remove the anti-corrosion oil with kerosene or organic solution, air drying, and then adding grease. (it is recommended to use lithium soap grease with viscosity marked N0.2) when lubricating, rust proof oil does not need to be removed, and lubricating oil with viscosity grade of ISO vg15-100 can be selected according to temperature change. Because the sealing ring will scrape oil, oil lubrication is not suitable for the bearings with sealing ring. Maintenance of plastic linear bearing: since the sliding film of plastic linear bearing is made of self-lubricating plastic, no additional oil supply and maintenance are required in the use process; moreover, since the plastic linear bearing has chip groove, even if the bearing or shaft is full of dust, no maintenance is required, and the dust will be automatically removed from the chip groove during the movement process; Only when the sliding film is worn, can the inner sliding film be replaced directly. Easy to maintain.

　　以上是導軌絲杠廠家為大家介紹的相關內容，想要了解更多內容，歡迎訪問網站：http://m.2b4g.com

　　The above content is introduced by the guide screw manufacturer. For more information, please visit the website: http://www.jgongrun.com
